Navien Tankless Water Heater Install Cost in 2026

Three model families that cover almost every residential quote

Navien's residential line consolidates around three families. Almost every quote you receive will be from one of them.

NPE-A2 series, the comfort-feature flagship

The NPE-A2 series (NPE-180A2, NPE-210A2, NPE-240A2) ships with the 0.5-gallon ComfortFlow buffer tank and the integrated recirculation pump as standard. UEF rating is 0.97 across the line. Unit prices in 2026 run $1,800 to $2,200 for the NPE-240A2, which is the model most plumbers default to for a 3-bath or 4-bath house. Installed cost lands at $3,800 to $4,500.

The buffer tank matters more than spec-sheet readers usually realise. Without it, a tankless unit cycles off briefly between draws (someone closes the tap to rinse a dish, opens it again 15 seconds later), and the brief moment between cycles delivers cold water. The buffer maintains output through these moments. In daily use it is the difference between guests noticing the heater and not noticing it.

NPE-S2 series, the lighter sibling

The NPE-S2 series is the NPE-A2 without the buffer tank and pump. Same heat exchanger, same UEF, $300 to $500 cheaper at distribution. Sensible if you do not need recirculation and do not have rapid open/close fixture patterns (an empty-nest two-person household, for example). Unit price: $1,200 to $1,800. Installed: $3,000 to $4,000.

NPN-U series, the non-condensing budget option

The NPN-U is Navien's answer to the price-sensitive Rheem RTG and Bradford White EF Series. Non-condensing, 0.83 UEF, no buffer, no pump. Unit cost: $900 to $1,400. Installed: $2,400 to $3,400. It does not qualify for the 25C tax credit because it falls below the 0.95 UEF threshold. For households where you cannot vent through a side wall (the NPN-U uses Category III stainless vent vertically through the roof), this is sometimes the only Navien option.

NCB hybrid (combi) units, for forced-hot-water heating

The NCB-E series doubles as a space heater. Pump-driven hydronic output for radiators or radiant floor, plus domestic hot water from the same unit. Installed cost in a forced-hot-water house: $4,500 to $7,500. Out of scope for a domestic-only quote, but worth knowing exists if you also need a boiler swap, because the combined cost is well below a separate boiler plus tankless heater.

Itemised installed cost for the NPE-240A2

The middle-of-distribution Navien install is the NPE-240A2 in a 3-bath house. Here is what the line items look like in a 2026 quote in most US metros:

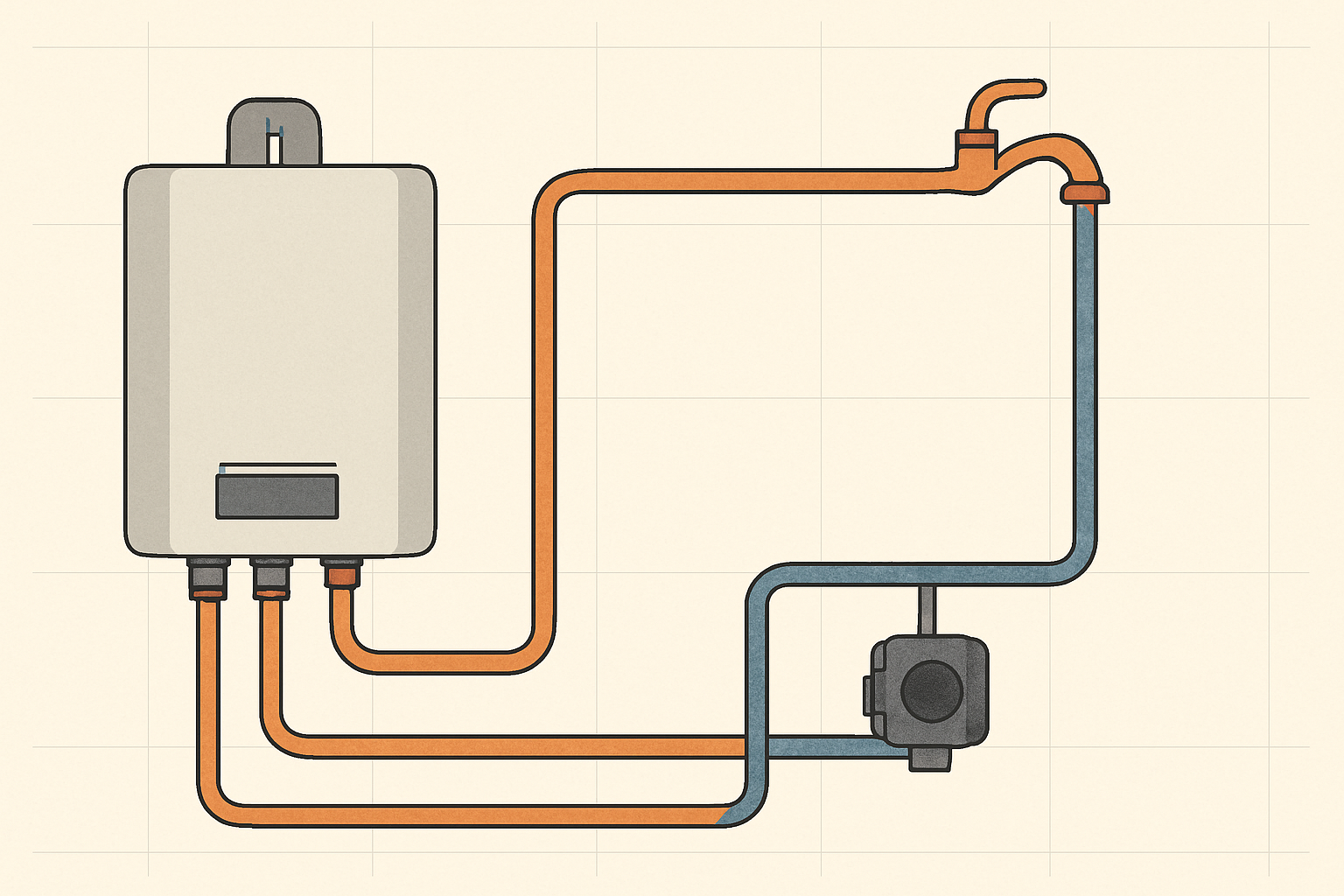

The wider range than Rinnai is mostly the recirculation return option. A dedicated return line (the gold standard for instant hot water at distant fixtures) adds $400 and 2 hours of labour. A comfort-mode loop using the cold-water line as a return adds zero in plumbing cost but means cold-line water gets slightly warm during pump cycles, which some people dislike.

PVC venting vs Rinnai's stainless requirement

Navien's NPE-A2 and NPE-S2 are rated for Schedule 40 PVC venting in lengths up to 65 ft. Rinnai's competing models require Category III stainless, which costs three to five times more per foot. On a 40-ft vent run, the cost gap is $300 to $500 in materials alone. That gap is the single largest reason Navien installs come in below Rinnai on long-vent jobs.

The PVC route does come with a caveat: PVC softens at high temperature, and Navien specifies it strictly for condensing units where exhaust temperature stays below 140F. If your installer wants to use PVC on a non-condensing NPN-U they are violating the listing. That is a code violation that will fail inspection.

How the federal 25C credit applies

The NPE-A2 series qualifies for the IRS Section 25C Energy Efficient Home Improvement Credit at 30% of installed cost, capped at $600 for water heaters in any one tax year. Filed on IRS Form 5695. Navien publishes a manufacturer certification statement on their dealer portal; ask your installer to provide it on completion.

The 25C $600 cap is the binding constraint on a $4,000 install (which would otherwise return $1,200 at the 30% rate). After-credit cost on a typical NPE-240A2 install is $3,200 to $3,900.

State-program rebates that stack

Navien participates in several utility rebate programs that combine cleanly with the federal credit:

• NYSERDA Comfort Home: $700 toward an ENERGY STAR Most Efficient condensing tankless installed by a participating contractor. Program details.
• Mass Save: $200 to $750 in MA, processed by the installing utility.
• SoCalGas rebate: $600 on qualifying ultra-low NOx Navien units in the South Coast Air Quality Management District (only the SE-Series models meet rule 1146.2).
• Xcel Energy Colorado: $400 to $500 on condensing tankless installs.

Stacked, federal plus state can bring a $4,200 NPE-240A2 install down to $2,900 to $3,300 after-incentive in the high-rebate states.

Real-world failure modes and lifecycle cost

From installer surveys and the Navien tech-support knowledge base, the most common service events on a 10-year-old Navien are:

• Flame rod (years 8 to 11). $180 part, 30 min labour. Total $250 to $350.
• Air pressure switch (years 6 to 10). $80 part, 20 min labour. Total $150 to $250.
• Recirculation pump (years 9 to 14). $240 part, 60 min labour. Total $400 to $550.
• PCB main control (years 12 to 16). $350 to $500 part, 60 min labour. Total $500 to $750.
• Annual descaling, $80 to $150 plumber-performed, or $5 DIY with vinegar.

Over 20 years, total operating plus service plus install on a Navien NPE-240A2 in a 3-bath house averages around $10,200 to $11,400. Compare with two 50-gallon gas tanks at $1,800 each plus $550 a year in operating cost: $14,600 over the same window. The Navien wins by roughly $3,500 over 20 years even ignoring the 25C credit and any state rebate.

When Navien is the wrong choice

Three scenarios where Navien underperforms:

• Dealer-network desert. If you live in a rural area where the nearest Navien-trained plumber is 80 miles away, a part failure in year 9 becomes a multi-day affair. Rinnai's PRO network is more rural.
• Hard-water plus no softener plus condensing. Navien is more forgiving than Rinnai here, but neither brand survives 15+ grain hard water without an annual descale. If you cannot commit to maintenance, a tank heater with an anode rod survives neglect better.
• True point-of-use (under-sink). Navien does not make a residential point-of-use unit. EcoSmart, Stiebel Eltron and Bosch own that segment.

Bottom line

For most 2- to 4-bath houses on natural gas, Navien NPE-A2 is the lowest total-cost-of-ownership tankless on the US market in 2026. Installed at $2,800 to $4,500, with the built-in recirculation pump and buffer tank already in the price, it routinely beats Rinnai by $300 to $600 on like-for-like quotes and offers comparable longevity. The only meaningful trade-off is dealer-network density in non-metro markets.
